- Plug & Play installation with multiple sump setup options.
- Easy fleece-mat replacement system.
- Efficient, high-flow, skimmer friendly, 50 g/m2, non-woven polyester fleece-mat rolls.
- Smart drive unit – connected to the ReefBeat ecosystem.
- Solid-State internal and external water level sensors (no moving parts).
- Integrated media basket for additional chemical filtration.
- Kink-resistant, corrugated inlet hose with a USA/Metric PVC connector.

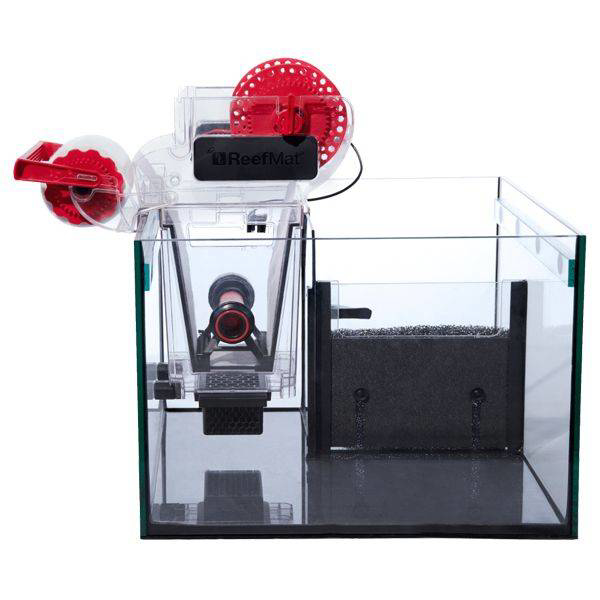

The ReefMat comes fully assembled, straight out of the box. Designed to hang on a sump wall to conserve space, but also including mounting legs, you can place the ReefMat anywhere you want in your sump that has the space available. Both the drive unit and inlet hose can be positioned on either side of the ReefMat making installation work for any sump set up.
ReefBeat App
- One interface for all of Red Sea’s smart devices.
- Easy set-up and operation.
- On-line monitoring and notifications.
ReefBeat gives you timely notifications when the fleece not only needs maintenance, but also if it should get stuck or torn. If any error occurs, the motor will simply not attempt to feed any more fleece until the issue is resolved. The end of Roll Monitor function lets you know the daily average use, and how many days you have left before the filter roll runs out so you can plan ahead.
Specifications
Rec. Tank Size - Up to 130 gallons (500 Liters)
Max. Flow Capacity - 1580 GPH (6000 LPH)
Fleece-mat Width - 4.4"
Fleece-mat Length - 92'
Unit Dimensions - 8.3" x 10.6" x 16.7"
Media Basket - 350mL
Note: Suitable for saltwater aquariums only.
Compatibility Chart
| System | ReefMat 500 | ReefMat 1200 |
| REEFER NANO | ✗ | ✗ |
| REEFER 170 | ✓1 | ✗ |
| REEFER 250 | ✓2 | ✗ |
| REEFER 250 V3 | ✓3 | ✗ |
| REEFER 350 | ✓2 | ✗ |
| REEFER 350 V3 | ✓3 | ✗ |
| REEFER 450 | ✓4 | ✓4 |
| REEFER XL 200 | ✓1 | ✗ |
| REEFER XL 300 | ✓3 | ✗ |
| REEFER XL 425 | ✓4 | ✓4 |
| REEFER XL 425 V3 | ✓4 | ✓4 |
| REEFER XL 525 | ✓4 | ✓4 |
| REEFER XL 525 V3 | ✓4 | ✓4 |
| REEFER XXL 625 | ✓4 | ✓4 |
| REEFER XXL 750 | ✓4 | ✓4 |
| REEFER XXL 750 V3 | ✓4 | ✓4 |
| REEFER 3XL 900 | ✓4 | ✓4 |
| REEFER S-850 | ✓4 | ✓4 |
| REEFER S-1000 | ✓4 | ✓4 |
| REEFER PENINSULA 500 | ✓4 | ✓4 |
| REEFER PENINSULA 650 | ✓4 | ✓4 |
| MAX E-170 | ✓1 | ✗ |
| MAX E-260 | ✓2 | ✗ |
| MAX S-400 | ✓ | ✓ |
| MAX S-500 | ✓ | ✓ |
| MAX S-650 | ✓ | ✓ |
1 Sump modification required; Remove all internal walls
2 Sump modification required; Remove sock holders
3 Sump modification required; Remove sock holders & refugium divider
4 Sump modification recommended; Remove sock holders
