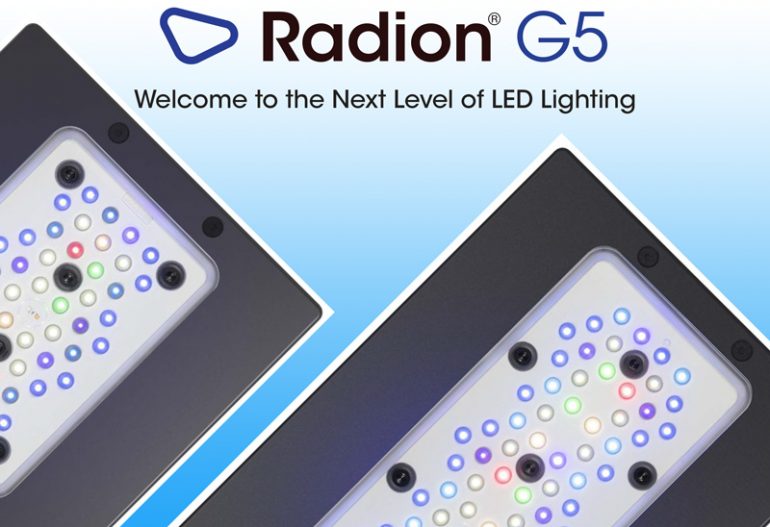

EcoTech Marine Radion LED XR30 GEN 5 BLUE

3 available
Manufacturer: EcoTech Marine
Old price: $1,699.00 incl GST
$1,499.00 incl GST

The TL:DR on the Radion G5 is 35% more light coming from over one hundred LEDs, controlled across ten channels, spread out by an improved version of the HEI lenses, and thoroughly cooled with a custom designed fan  . . . plus moonlights, two of them.

In the past we’ve had two sizes of the Radion in the form of the XR30 and the XR15, as well as a regular and Pro versions of the ‘Ecotech’ light. For the fifth generation of their flagship aquarium luminaire Ecotech Marine has designed a new Radion Gen 5 Blue which is sure to make a lot of modern reef keepers very happy.

This new sapphire centric Radion Gen 5 Blue uses only three cool white LEDs in the XR15 and six in the XR30 models, with a giant heap of blue diodes to create the deepwater spectrum. The larger Radion Gen 5 blue is rocking 40 royal blues, 20 blues, 6 violets, 4 x 405nm UV, 4 x 415nm UV, 10 Cyans and all new for Radions is the use of 6 lime light emitting diodes, plus two ‘photo’ red LEDs because you know, ‘balance’.

The overall power consumption is now around 215 watts for the Radion Gen 5 Pro and 205 watts for the Radion Gen 5 Blue, although the latter is sporting a little bit more PAR due to the intensive investments in the blue spectrum. Using over one hundred LEDs in a light the same size as before takes some serious engineering of the thermal management – the cooling fins and custom made fans – but it also required an all new HEI 2 lens cluster.

The Hemispherical Edge Illumination 2 is geometrically identical to the first gen HEI lenses but with a nano texture for very light diffusion and color blending using a spark process. Right out of the box Ecotech Marine’s new Radion Gen 5 Pro and Blue light fixtures will have the most uniform light field they’ve ever created, driving 35% more light into the tank.

The new fifth generation Radions output lower peak PAR as well, so no more ‘volcano’ style PAR graphs which will be very much appreciated by our SPS corals. But if you want even more diffuse  light throughout your tank, you will now be able to add the secondary diffuser without any changes to undercarriages, the current diffuser attaches directly to it with the built in magnets.

Ecotech went above and beyond in squeezing additional functionality from the Ecosmart Live control platform , but the future demands next generation features. Another major upgrade which is not so easily seen is that the Radion Gen 5 Pro and Blue will be Ecotech Marine’s first LED lights to be accessed exclusively on Mobius, their next generation control platform which launched alongside their all-new Versa Dosing Pump.


Length 11.8in.(30cm)
Width 7in.(18cm)
Height 1.5in.(3.9cm)
Weight 4.5lbs.(2041g)
Power Specifications
Power Consumption 205W
Universal Input Range 100-240VAC, 50/60Hz
Peak Inrush Current 4.0A
Cool White
Royal Blue
Photo Red
6 - Violet
Lunar Light
